| Operation |

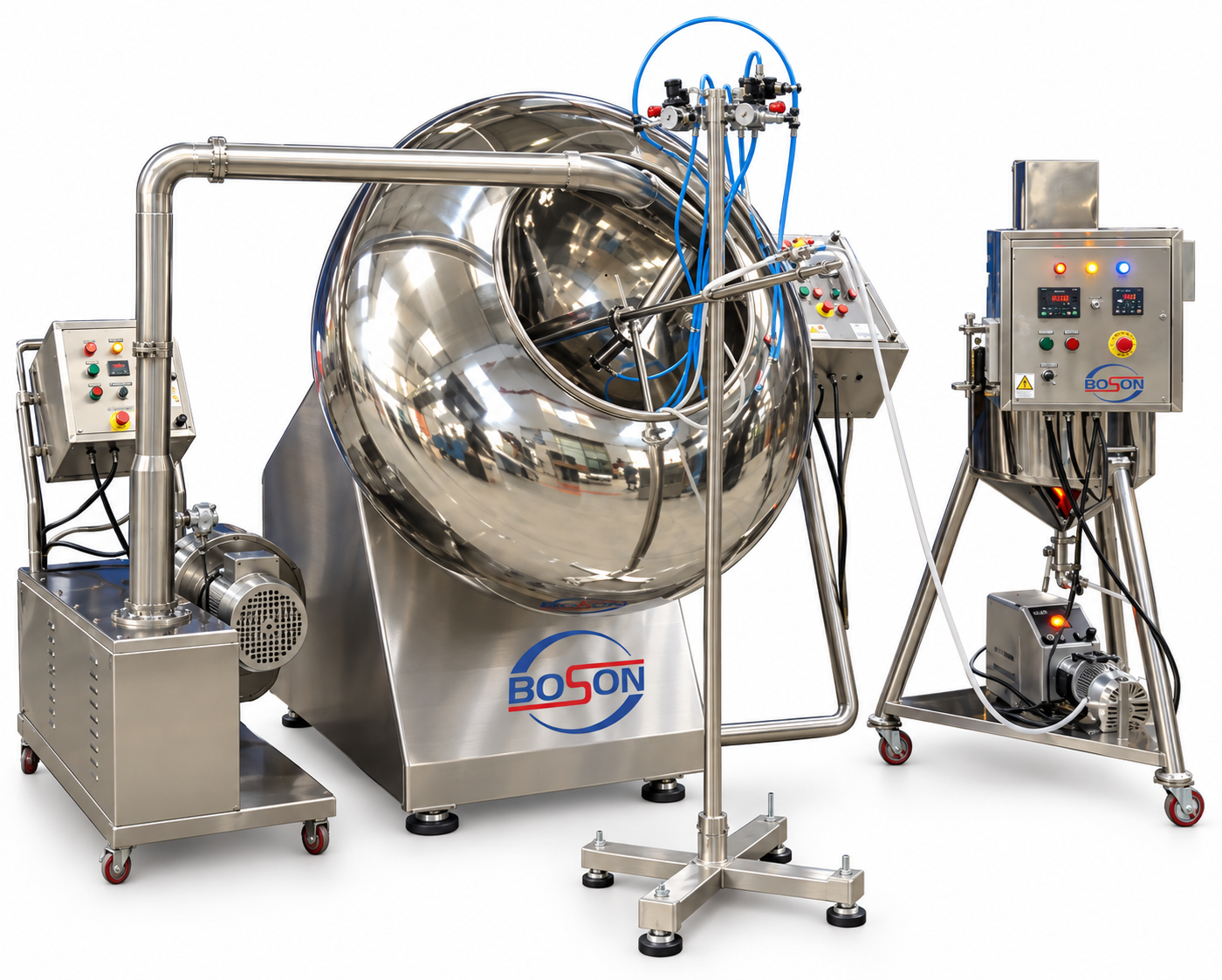

| Boson – Conventional coating machine are used to coat tablets, pills, etc. in for a variety of industries such as Pharmaceutical, Confectionery, Food and others. They are also used for rolling and heating beans and edible nuts or seeds. The product is to be filled inside the pan. During the rotation motion, coating material is sprayed by spraying system according to the technological process and rational technological process. So, process materials (product) are coated due to rotating pan. The coating round pot is rotated by variable speed. At the same time hot air is supplied through inbuilt Hot air blower system which dries rapidly (heating or cooling) and evenly thus forming a solid and smooth surface. |
| Model | BCP –12” |
| Contact Parts | SS – 316 Material |
| Non Contact Parts | SS – 304 Material |
| Pan RPM | 2-45 |
| Speed Controller By AC VFD Drive | Speed can be Adjust by Speed Knob between 0 to 45 RPM. |
| Surface Finish | All Product Contact Parts – Mirror Finish All the Non-Contact Parts – Matt Finish |
| Gear Motor Drive | Pan Motor HP is given in technical sheet model wise . Sturdy & Maintenance Free Geared Motor for continuous operation. |
| Hot Air Blower | Blower Motor HP & Electric Heater KW is given in technical sheet model wise . The unit is with a hot air blower consisting of Model wise HP, 3 phase AC Motor with centrifugal blower and Model Wise Kw electric heater chamber. The air can be heated to the desired temperature and controlled with the help of a digital temperature controller cum indicator. |
| Coating Pan | Stainless Steel 316 quality Coating Pan with a circular mouth for easy charging & Discharging of Tablets & mounted at an inclination of 350 . |
| Control Panel Board | An Electric control panel fitted on the machine consisting of switches for Pan, Hot Air Blower, Heater, Exhaust Blower, Speed controller switches for Pan, Blowers, Digital Temperature controller cum indicator etc. The Heaters and blowers are interconnected for the safety purpose so that heaters can be started only if the blower is on. |
| Mixing Baffles | Easily Detachable for cleaning. |
| Operating Temperature | 30 to 80 degree C. |
| Spray System | The Unit is provided with Peristaltic pump with Spray gun & silicon tubing’s. Pump is a Variable speed pump provided with digital controller for precise speed regulation and rapid priming facility. Pump flow rates 0.5 ml to 100 ml. Flow rate of the spray can be controlled with the easy setting of the Peristaltic pump. |
| Spray Nozzle | Flat Fan SS 316 Spray Gun with height adjustable stand. |
| Peristaltic Pump | 1 to 100 RPM, 0.5 to 100 ml/min Flow rate. |
| Noise Level | < 75 db |
| Technical Specifications |
| Model | BCP12 | |||||||
| Pan Size | 12” | |||||||
| Loading Capacity in Ltrs. | 15 | |||||||
| Motor H.P. | 0.5 | |||||||
| Blower H.P. | 0.5 | |||||||
| Heater Capacity in Kw. | 1.0 |
| Utility Requirement |
| Electric Supply Voltage | 3 Phase / 415 Volt /50 Hz |
| Compressed Air for Spraying System | 6 Bar (87 PSI) |
| Note-Electric voltage & frequency can be provided as per customer’s requirement to specify while placing an order. |
| Salient Features |
| Design is as cGMPAll contact parts are made of SS 316 and non-contact parts are SS 304.Totally enclosed with MS cladding with standard gearbox, motor, and hot air blowing arrangement by variable speed for pan.Designed with fabricated structure and all arrangement except electric control, and SS Pan are inside the enclosure, which makes simple cleanable outside covering.Low maintenance, easy-clean design.Variable speed with RPM display.AC frequency drive for Pan.Spray gun, peristaltic pump & pneumatic controls. |
| Item / Make |
| AC VFD Drive | Schneider or Equivalent |
| Main Electric Motor | ABB / Crompton Greaves or Equivalent |
| Pneumatics | Janatics / Festo or Equivalent |
| Peristaltic Pump | Flowtech |
| Switches | Salzer / Teknic or Equivalent |
| Optional at Extra Cost as per Client Requirement |
| Solution Preparation Vessel 10 LtrsSolution Preparation Vessel with Heating Jacketed Solution Preparation Stirrer |
