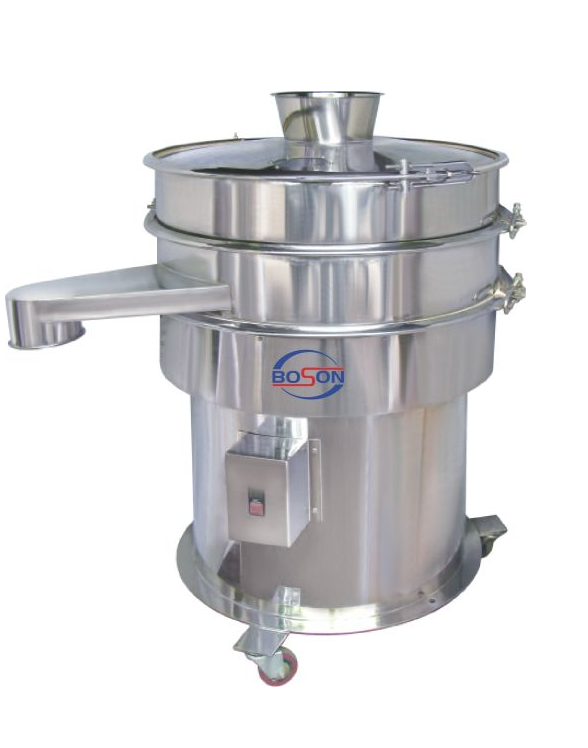

Boson – Vibro sifters are used for raw material sieving in pharmaceutical, food and chemical industry. Raw material is fed through in feed hopper and there is a sieve of required mesh size through which the sieved material falls. There is Vibro motor and spring type suspension system through which the vibration of the Vibro motor is transmitted to the sieve chamber. As the sieve vibrates the material gets sifted or sieved through it.
| Technical Specifications |
| Model | BVS-12 | ||
| Machine Diameter ( Size ) | 12” | ||
| Screen Diameter | 300 mm | ||
| Capacity / Hour * | 1-5 Kgs. | ||
| Charging Height with lid | 720 mm | ||
| Discharging Height | 485 mm | ||
| Electric Motor | 0.25 HP / 1440 rpm | ||
| * Output depend on material & size of mesh … | |||
| Salient Features |
| All contact parts and screen of SS 316 AISI stainless steel material. All Non Contact parts of SS 304 AISI stainless steel material. Noiseless, Maintenance free & high speed machine. Available in different models. (12” , 20”,24”,30”,36”,48”,60”,72”) Available in Double Deck & Triple Deck Screen Model available. ( Optional ) Electric power consumption is very less compared to reciprocating vibratory system. Standard machine are with TEFC motor explosion proof / flame proof motor (Optional) Magnetic Grill at discharge. ( Optional ) Wide Range of sieves available in sizes from 4 mesh to 150 mesh. Easy dismantling and cleaning facility for contact parts. Compact design for high speed & dust free sieving as per cGMP standards. PU castors for mobility ( Model 12” to 36” ) |
| Utility Requirement |
| Electric Supply Voltage | 3 Phase / 415 Volt /50 Hz |
| Note-Electric voltage & frequency can be provided as per customer’s requirement to specify while placing an order. |
| Electrical Specification |
| Item | Make |
| Electric Motor | Crompton Greaves or Equivalent |
| Electrical Parts / Switches | Salzer / Teknic or Equivalent |
| Optional at Extra Cost as per Client Requirement |
| Flame Proof Motor Flame Proof Push Button Starter Extra Sieves ( Screen )Double Deck , Three Deck |
