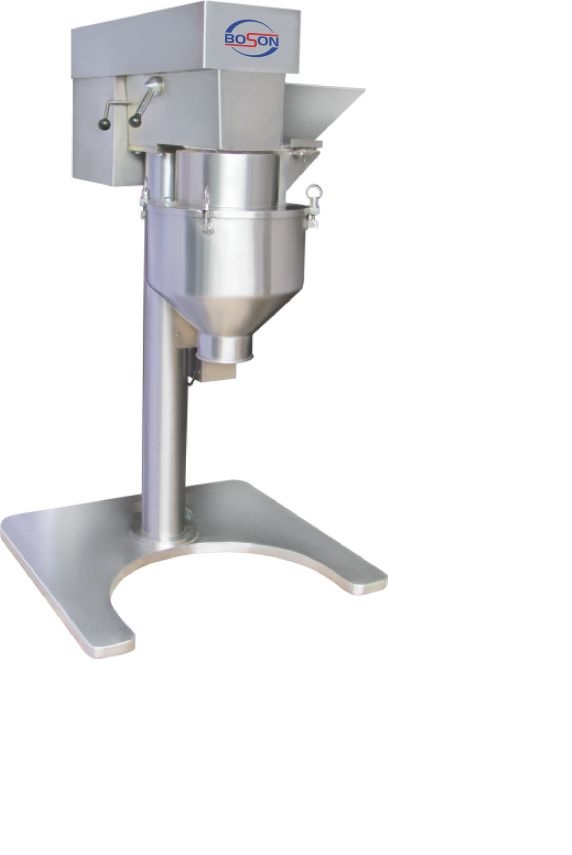

Boson – Multi Mill  /  Grinding Mill extremely reliable, perfect for even the most demanding of processing requirements Production. This Equipment balances performance with simplicity, to provide a solution that guarantees a high output but is easy to operate, clean and maintain.

The Multi Mill is suited to dry & fine milling in the pharmaceutical, food, chemical and consumer goods industries. The mill can easily be adapted for use on different products, simply by changing the granulating screen, presenting a cost-effective solution to your size reduction requirement.

Technical Specification
ModelBMM-10
Contact PartsSS -316 Material
Non Contact PartsSS -304 Material
Output **2 to 10 Kgs/Hr.
Rotor Assembly Diameter
Rotor SpeedMin 700 rpm & max 2800 rpm Variable
Beaters12 Nos. knife impact edges & 02 Nos. Scraper blades
Screen dimensionInner Diameter 163 mm./ Height 85 mm
Motor0.5 HP. / 2800 RPM / 3 Phase
AC VFD Drive0.5 HP
Starter“ DOL “ with reversible switch
Material Charging Height910 + – 5 mm
Material discharging Height470 + – 5 mm
Noise Level< 75 db
Surface FinishInside Contact Parts – Mirror Finish 240 Grit Outside Non Contact Part – Matt Finish 150 Grit
O rings , seals & gasketsSilicone food grade
Overall dimension in mmL 500 x W 500 x 750 H
Net Weight45 Kgs.
Utility Requirement
Electric Supply Voltage3 Phase / 415 Volt /50 Hz
Note-Electric voltage & frequency can be provided as per customer’s requirement to specify while placing an order.
Salient Features
All Electrical Parts used CE Certified Company Direction  of Beaters can be changed by reversible switch All Contact parts can be easily and quickly dismantled and cleaned.Machine is designed for Continuous operation.Cylindrical screen for higher output. ✓   Low maintenance, Simple to operate. ✓   No metal-to-metal contact. ✓   Variable speed with RPM display. ✓   Flexible feeding Facility. ✓  Provide option of inline milling with Rapid Mixer, Blender & Sifter machines. ✓  Achieve Uniform particle size quickly. ✓  Low Noise operation with low Heat and Dust. ✓   Easy changeable screens. ✓   Castors for mobility. ✓   Sturdy cGMP construction.
 Electrical Specification
Item Make
AC VFD DriveCrompton / Schneider /   or Equivalent
Electric MotorCrompton Greaves or Equivalent
Electrical Parts / SwitchesSalzer / Teknic or Equivalent
 Optional at Extra Cost as per Client Requirement
Flame Proof Motor Flame Proof Control Panel Extra Sieves ( Screen )
